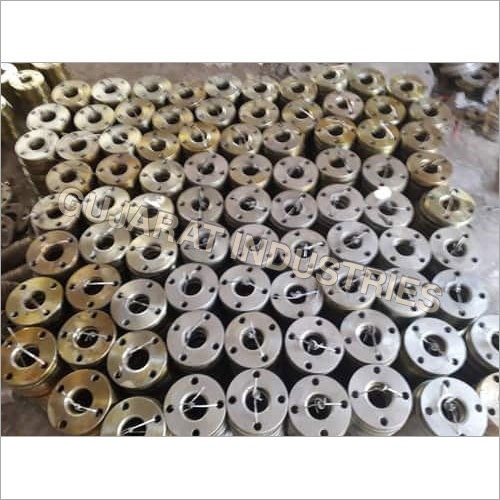

MS Plate Flanges

Get a Price/Quote

MOQ : 50 Pieces

MS Plate Flanges Specification

Dimension (L*W*H)
As per specification / drawing

Grade
IS 2062, ASTM A36, S235JR

Application
Oil & Gas, Waterworks, Chemical, Power Plants

Feature
Corrosion resistant, High strength, Durable

Product Type
Plate Flange

Material
Mild Steel (MS)

Standard
ANSI B16.5, DIN, BS, IS

Shape
Round

Surface
Polished

Connection
Welded

Technics
Forged

Pressure
PN16, PN10, 150LB, 300LB

Size
1/2 to 36 (DN15 to DN900)

Color
Black or Silver

Packaging
Wooden Boxes/Plastic Wrapped

Density
7.85 g/cm³

Manufacturing Method
Cut and machined from steel plate

Bolt Hole
Drilled as per standards

Finish
Hot dip galvanized, Self colored, Painted

Temperature Range
-20°C to 400°C

Face Type
Flat Face (FF), Raised Face (RF)

Tensile Strength
370-700 MPa

Thickness
3mm to 30mm

MS Plate Flanges Trade Information

Minimum Order Quantity
50 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
15000 Pieces Per Month

Delivery Time
4-5 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Loose Packing & Bundle Packaging

Main Domestic Market
All India

Certifications
ISO 9001 : 2008

About MS Plate Flanges

Product Specification :

Size : 0.5 to 28 Inch
Thickness : 8 mm To 50mm
End Used : All Chemical Plant, Boiler, Pipe Fitting, Vahicle Parts
Product Market : All Over India
Sample Services : Yes

Backed by rich domain expertise, we have been affianced in providing a wide assortment of MS Plate Flanges. The offered flanges are extensively manufactured by utilizing supreme quality mild steel under the supervision of our deft professionals. These flanges are used in various industries for sealing of pipes at their closing ends. Furthermore, we are offering these MS Plate Flanges in various sizes and finishes at a market leading price range to our clients.

Features:

Sturdy construction
Fine finish
Resistant to corrosion
Dimensionally accurate

Versatile Application and High Durability

MS Plate Flanges are engineered for demanding environments, offering corrosion resistance and high tensile strength. With both flat and raised face options, theyre well-suited for use in oil & gas, water treatment, chemicals, and power generation. Their versatility spans several recognized standards and pressure classes, ensuring a dependable fit for a wide spectrum of piping systems.

Precision Manufacturing and Quality Assurance

Each flange is cut and machined from premium mild steel plates, following stringent quality procedures. Surface finishes include hot dip galvanized, painting, and polishing for enhanced durability. Flanges are available in black or silver, packaged securely in wooden boxes or plastic wrap, and adhere to industry-leading standards like ANSI B16.5, DIN, and IS.

FAQs of MS Plate Flanges:

Q: How are MS Plate Flanges manufactured?

A: MS Plate Flanges are produced by cutting mild steel plates to specification and then machining to precise dimensions. This process results in reliable mechanical properties and accurate sizing, meeting recognized industry standards such as ANSI B16.5 and DIN.

Q: What standards and pressure ratings are available for these flanges?

A: These flanges comply with standards including ANSI B16.5, DIN, BS, and IS. Supported pressure classes range from PN10, PN16 up to 150LB and 300LB, making them suitable for a broad scope of applications in industrial environments.

Q: When should I use flat face (FF) versus raised face (RF) flanges?

A: Flat face (FF) flanges are suitable for systems where the mating flange or the connected equipment also uses a flat face to prevent over-stressing. Raised face (RF) flanges are preferred where a gasket is required to contain higher pressures, providing a better seal under load.

Q: Where can MS Plate Flanges be used?

A: These flanges are commonly used in piping systems for oil & gas, water distribution, chemical facilities, and power plants, due to their durability and compatibility with a wide range of media and operating conditions.

Q: What are the benefits of the available surface finishes?

A: Hot dip galvanized, painted, and polished finishes enhance corrosion resistance and longevity. Self colored options provide cost benefits, while galvanized and painted finishes offer superior protection in harsh environments.

Q: How are the flanges packaged for delivery?

A: Packaged in sturdy wooden boxes or securely plastic-wrapped, MS Plate Flanges are protected against damage during shipping and storage to ensure they arrive in optimal condition for installation.
